AOS1476
Product Advantage
1. Product performance: Coalescence filter material.

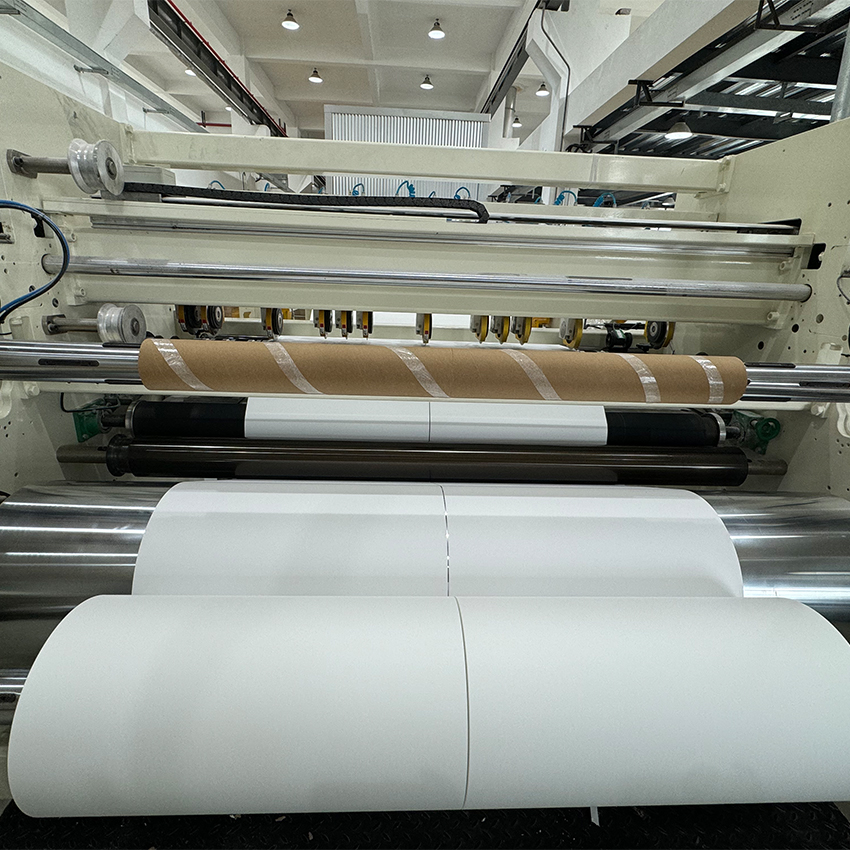

2. Production equipment: the existing ultra-low concentration oblique screen forming equipment, the experiment is good uniformity. The self-developed drying equipment is realized to a certain extent, with high efficiency and low resistance.
3. In terms of materials: nano glass fibers are selected, which have a small diameter, which can provide a large specific surface area, porosity and a small pore size, and the efficiency can be significantly improved, and the resistance has reached the international advanced level. Study chemicals, select different chemicals, and solve different physical index parameters.
4. In terms of technology development: professors from Donghua University and professors and experts from University of Shanghai for Science and Technology provide technical support.
5. Product service: customized production according to customer needs.
Product Uses：
1、Electronics industry
2、pharmaceutical industry
3、 household drinking water
4、food and beverage
5、 wine
6、beer
7、mineral water industry
Technical Parameters
| Unit | Max | Target | Min | Test Method | |
| BASUS WEIGHT | (g/㎡) | 90.0 | 85.0 | 80.0 | GBT 451.2-1989 TAPPI 410 om-2002 |
| Thickness (50 kPa) | (mm) | 0.550 | 0.480 | 0.410 | GB/T 451.3-2002(50kpe) TAPPI 411 om-2015(50kpa) |
AIR FLOW RESISTANCE: @5.33 cm/s - 32 L/min | (mm H20) (Pa) | 10.0 98.0 | 9.0 88.2 | 8.0 78.4 | ATI-100XP Automated Filter Test |
DOP PENETRATION:(0.3um) 5.33 cm/s - 32 L/min | % | 18.000 | 13.000 | / | ATI-100XP Automated Filter Test |
| Air Pemeability: | (cfm) | 17.0 | 15.0 | 13.0 | TAPPIT 251 (125pa) |
| TENSILE STRENGTH-MD. | (kN/m) | 3.600 | 2.800 | 1.800 | GB/T 12914-2008 (25.4mm/min) TAPPI 494 om-2013(25.4mm/min) |
| TENSILE STRENGTH-CD : | (kN/m) | / | 1.500 | 0.900 | GB/T 12914-2008 (25.4mm/min) TAPPI 494 om-2013(25.4mm/min) |
| GURLEY STIFFNESS - MD: | (mg) | 2000 | 1500 | 1200 | TAPPI 543 0m-2005 |
| Max Pore Size: | (μm) | 30 | 27 | 24 | QC/T794-2007 ASTM F316-03 |
| oil repellency grade: | Rating | 6 | 6 | 6 | GB/T 19977-2014 AATCC 118-2020 |
