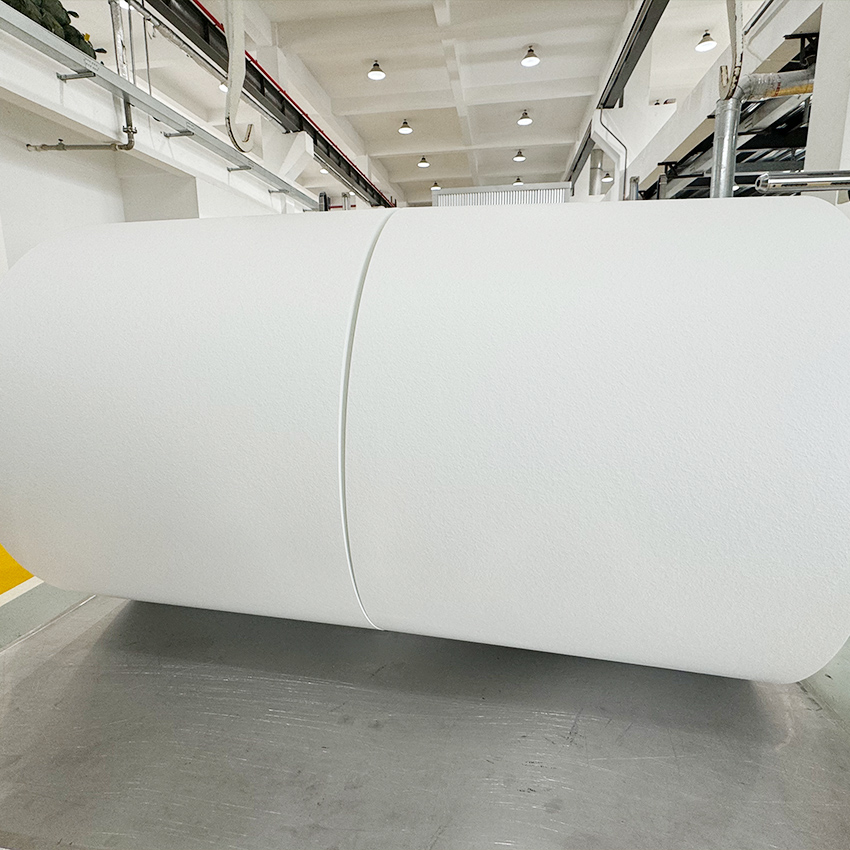

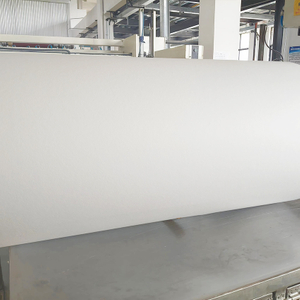

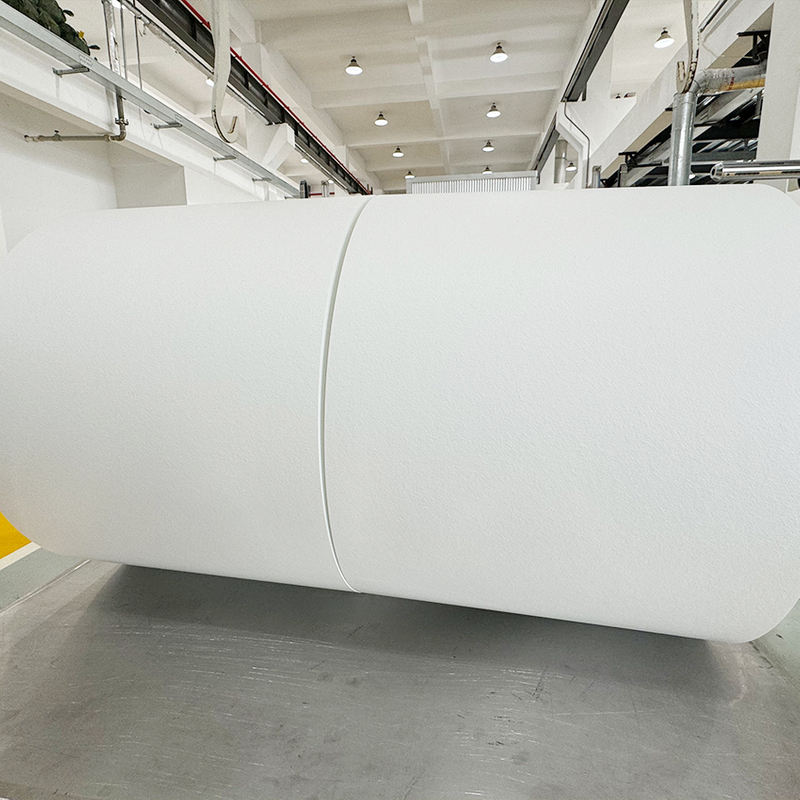

Side side10 micron glass fiber filter paper

For Mobile and Industrial Hydraulic Applications Market-leading energy savings at all efficiency ranges – Meconm hydraulic filter media provides consistant protection while it lowers energy usage and extends the life of system components. The glass media is laminated with polyester scrims on both sides.

Quantity:
Availability:





Inquire Add to Basket

Model:
ML1080SS

Product Description

Technical Parameters

	Unit	Max	Target	Min	Test Method
BASUS WEIGHT	(g/㎡)	133.0	126.0	119.0	GBT 451.2-1989 TAPPI 410 om-2002
Thickness (50 kPa)	(mm)	/	0.550	0.500	GB/T 451.3-2002(50kpe) TAPPI 411 om-2015(50kpa)
@ 5.33 cm/s - 32 L/min	(mm H20) (Pa)	/ /	5.8 56.8	/ /	ATI-100XP Automated Filter Test
Air Permeability	(cfm)	26	22.7	20	TAPPL T 251 (125pa)
TENSILE STRENGTH一MD:	(kN/m)	/	2.500	1.200	GB/T 12914-2008 (25.4mm/min) TAPPI 494 om-2013(25.4mm/min)
TENSILE STRENGTH-CD:	(kN/m)	/	1.200	0.600	GB/T 12914-2008 (25.4mm/min) TAPPI 494 om-2013(25.4mm/min)
Max. Pore Size:	(μm)	39	34	/	QC/T794-2007 ASTM F316-03
EFFICIENCY(BETA-200):	(μm)		10		ISO 16889(test run to 200 kPa) ISO 16889(200kPa)
DUST HOLDING CAPACITY	(g/㎡)		115		ISO 16889(test run to 200 kPa) ISO 16889(200kPa)

ML1080SS Side side10 micron glass fiber filter paper micron glass fiber filter paper
