A ulpa filter is a special air filter. It can remove 99.999% of tiny particles in the air. These particles can be as small as 0.12 microns. This strong filtering makes the ulpa filter very important. It is needed in places where even tiny bits of dirt can cause trouble. The table below shows that a ulpa filter catches smaller particles than a HEPA filter. This makes it great for cleanrooms and labs.
Feature | ULPA Filter | HEPA Filter |
|---|---|---|
Filtration Efficiency | Removes 99.999% of particles ≥0.12 microns | Removes 99.97% of particles ≥0.3 microns |
Particle Size Capture | Captures ultra-fine, smaller particles | Captures larger particles effectively |
A ulpa filter traps very small pieces of dust. This helps lower health risks like breathing problems and allergies. Bad indoor air can cause these issues. Products like glass fiber filter paper from MECONM make air even cleaner in special places.
ULPA filters take out 99.999% of very tiny particles as small as 0.12 microns. This makes them great for super clean places like labs and cleanrooms.They trap particles by interception, impaction, diffusion, and electrostatic attraction. They use special glass fiber materials to do this.ULPA filters catch smaller particles and clean air better than HEPA filters. But they need stronger fans and more careful handling.These filters help keep people healthy by lowering germs, dust, and viruses. They are used a lot in medical, electronics, and pharmaceutical places.Picking ULPA filters means safer air and better product quality. Even the smallest dust can cause big problems in these places.
A ULPA filter means Ultra-Low Penetration Air filter. This filter is one of the best for cleaning air. It can remove 99.999% of tiny things in the air that are 0.12 microns or bigger. These filters are very important in places where even small bits can cause problems. You can find them in cleanrooms, labs, and places that make high-tech products.
ISO 14644 says cleanrooms must use ULPA filters. These filters catch particles as small as about 0.128 microns. They work much better than HEPA filters. ULPA filters follow strict rules from around the world. This makes them needed for places that must have very clean air.
ULPA filters take out 99.999% of things bigger than 0.12 microns.
HEPA filters take out 99.97% of things 0.3 microns or bigger.
These numbers match rules for cleanrooms everywhere.
Aspect | Description |
|---|---|
Efficiency Requirement | ULPA filters must reach 99.999% for tiny particles |
Particle Size | Catches things as small as 0.12 microns |
Usage | Used in air systems that need very strong filtering |
Construction Grades | Many grades set by world standards |

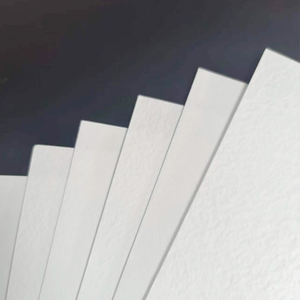

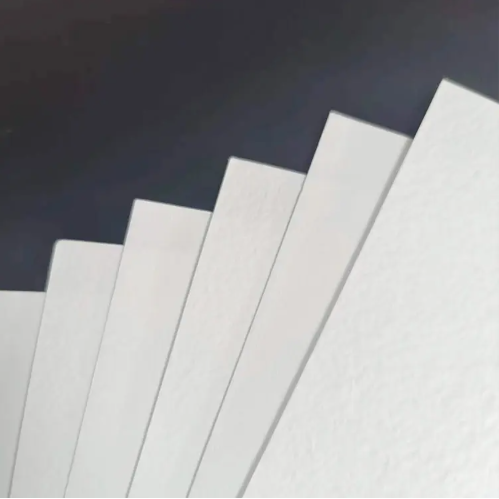

ULPA filters use special materials like glass fiber filter paper and membrane filter paper. MECONM makes these materials to be very good and safe for the environment. Their products help keep important places free from dirt and germs.
ULPA filters use science to trap very tiny things. The filter has a thick web of very thin fibers. These fibers are made from glass or man-made stuff. The fibers are folded in deep pleats. This gives more space to catch more particles.
The main ways ULPA filters trap particles are:
Interception: Particles move with the air and touch the fibers. They stick to the fibers. This catches medium-sized things.
Inertial Impaction: Big particles cannot turn with the air. They hit the fibers and get stuck.
Diffusion: Very tiny particles move in random ways. This helps them bump into the fibers and stick.
Electrostatic Attraction: Some ULPA filters have charged fibers. These fibers pull in charged particles and trap them.
ULPA filters work very well for particles between 0.1 and 0.2 microns. This makes them great for places where even tiny things can cause harm.
ULPA filters make it harder for air to pass through than HEPA filters. This means you need stronger fans to push air through them. For example, a normal ULPA filter has a pressure drop of 1.5 to 3.0 inches of water. A HEPA filter has a pressure drop of 1.0 to 2.0 inches.
MECONM’s special filter paper helps keep the air clean but does not block air too much. Their way of stacking fibers makes sure every filter works the same. This makes their ULPA filters a good choice for important jobs.
ULPA filters keep important places safe by removing many kinds of dirt and germs. They can even catch some viruses. This is very important in electronics, medicine, and science labs. Clean air keeps people and products safe.
ULPA filters are known for being very good at cleaning air. They can remove at least 99.9995% of tiny things in the air, even ones as small as 0.12 microns. This is much better than what HEPA filters can do. Tests in labs show that ULPA filters catch almost all small particles. They work about ten times better than HEPA filters when it comes to the hardest particles to trap. This strong cleaning is needed in places like cleanrooms, medicine labs, and electronics factories. Even a little dust can cause big problems there.
There are strict rules for how well ULPA filters must work. For example, EN 1822 and ISO 29463 say ULPA filters need to reach at least 99.9995% efficiency. Some filters, like U16 or U17, can do even better. The table below shows how ULPA filters compare to other types:
Filter Class | Minimum Efficiency (%) | Particle Size (microns) |
|---|---|---|
ULPA (U15) | ≥ 99.9995 | 0.12 |
U16/U17 | ≥ 99.99995 | 0.12 |
MECONM uses new technology to make sure every ULPA filter meets these tough rules. Their filters help keep important places safe from bad particles.
What ULPA filters are made of and how they are built is very important. Most ULPA filters use glass fiber to catch very small things. MECONM has a special way of making and stacking these fibers. This makes the filter work well and last longer. It also lets air move through easily.
ULPA filter frames are often made from anodized aluminum or stainless steel. Aluminum frames are light and simple to put in. Stainless steel frames are strong and do not get damaged by chemicals. Polyurethane sealants stop leaks, which is important in places like chip factories.
MECONM’s ULPA filters also follow world rules like EN1822, ISO 29463, and IEST-RP-CC001. The company cares about the environment. They use safe materials and smart ways to make their products. Their filter paper and membrane filter paper help keep air clean in many jobs, like electronics and medicine.
MECONM’s ULPA filters mix strong cleaning, tough materials, and earth-friendly ways to give good protection in important places.
ULPA filters and hepa filters both help clean the air. They do this in different ways and have different strengths. The biggest difference is the size of particles they can catch. ULPA filters can remove at least 99.9995% of very tiny particles, as small as 0.12 micrometers. Hepa filters catch at least 99.97% of particles that are 0.3 micrometers or bigger. So, ULPA filters can trap even smaller things than hepa filters.
The table below shows the main differences:
Feature | HEPA Filters | ULPA Filters |
|---|---|---|
Filtration Efficiency | Captures at least 99.97% of particles sized 0.3 micrometers | Captures at least 99.9995% of particles sized 0.12 micrometers |
Particle Size Capture | Targets particles 0.3 micrometers | Targets smaller particles, 0.12 micrometers |
Fiber Density & Mesh | Lower fiber density, coarser mesh | Higher fiber density, finer mesh |
Typical Use | General cleanrooms, homes, hospitals | Stricter cleanrooms, labs, microelectronics |
Trade-offs | Lower cost, longer lifespan, less airflow resistance | Higher cost, shorter lifespan, more airflow resistance |
ULPA filters use thicker materials to catch more tiny things. These materials include glass fiber air filter paper and membrane filter paper. This makes ULPA filters cost more and harder for air to pass through. Hepa filters last longer and are cheaper to take care of. They also use less energy because air moves through them more easily.
Note: ULPA filters must be changed more often and need special care. Hepa filters are easier to use in most places.
ULPA filters are best for places that need super clean air. You will find these filters in cleanrooms, medicine labs, and places that make electronics. They keep workers and products safe from the smallest harmful things. ULPA filters are also used in medical labs and surgery rooms where even tiny dust can cause problems.
Pick ULPA filters for:
Cleanrooms with strict air rules
Medicine and science labs
Electronics and chip factories
Medical labs and surgery rooms
Hepa filters work well in most homes, hospitals, and offices. They protect people from dust, pollen, and germs. ULPA filters are not needed in these places because hepa filters already clean the air well and cost less.
MECONM makes both ULPA and hepa filters. They use special air filter paper and membrane filter paper. Their filters meet tough rules for cleanrooms and labs. For most jobs, hepa filters give the best mix of price, energy use, and clean air. ULPA filters are only needed when the cleanest air is a must.

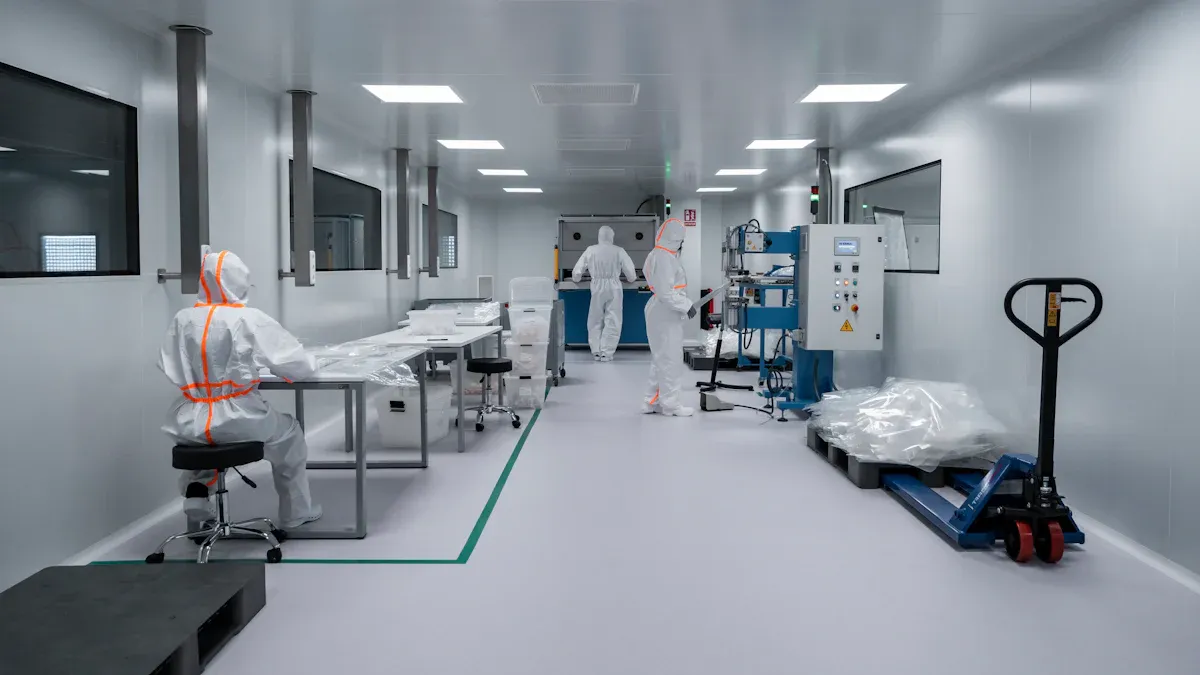

ULPA filters are very important in cleanrooms. They help keep the air clean by removing tiny particles. These small bits can hurt sensitive work. Even a little dust can ruin products or experiments in cleanrooms. ULPA filters take out at least 99.9995% of things as small as 0.12 microns. This strong filtering is needed in ISO Class 1–4 cleanrooms. These places have strict rules to protect people and products. Biosafety labs, like BSL-4, use ULPA filters to stop dangerous germs from spreading. Cleanrooms in microelectronics and chip factories need ULPA filters to meet high standards. ULPA filters give better protection than HEPA filters in these very clean spaces.
Cleanroom air systems use ULPA filters to keep air moving fast and keep pressure high. This stops outside air from getting into the cleanroom.
Medical and drug companies use ULPA filters to stop contamination. These filters are in cleanrooms where drugs and medical tools are made. ULPA filters remove tiny particles and germs that could spoil products or cause health problems. They help companies follow strict rules like ISO 14644-1 and FDA CGMP. ULPA filters work with pre-filters and HEPA filters in systems with many steps to keep air very clean. This keeps workers and patients safe. ULPA filters must pass hard tests to meet GMP and FDA rules. Good filter media, like membrane filter paper, helps them last a long time.
Regulatory Framework | Description |
|---|---|
FDA 21 CFR Part 211 | Controls air quality for drug safety |
GMP Standards | Needs strong filtering for pure products |
ULPA Filter Efficiency | 99.999% at 0.12 microns |
Many industries besides healthcare use ULPA filters. Electronics factories use them to keep dust away from microchips. Car factories use ULPA filters in paint booths and vents to keep paint jobs clean. Farms and food plants use ULPA filters to control germs in the air and help food last longer. New battery factories also use ULPA filters to control tiny particles. MECONM New Materials gives these industries high-quality ULPA filter paper and air filter paper. Their products use fine glass fibers and new technology for great results. MECONM helps with custom solutions for cleanrooms in electronics, cars, and more.
ULPA filters help keep people safe in special places. Hospitals and labs use these filters to stop germs in the air. ULPA filters can take out 99.999% of tiny things as small as 0.1 microns. This means they can catch bacteria and viruses that make people sick. In surgery rooms, these filters lower the chance of infections. They do a better job than hepa filters at catching the smallest bad things. When put in HVAC systems, ULPA filters help stop the spread of sickness. They must be put in the right way and checked often to work well. Cleanrooms in hospitals and drug companies need this strong protection. MECONM makes special air filter paper and membrane filter paper for these jobs. Their products help keep workers and patients safe by blocking harmful germs.
ULPA filters make places safer by catching more dangerous things than hepa filters. This is why they are needed where health risks are high.
ULPA filters also make air cleaner in cleanrooms. They catch very tiny things that hepa filters might miss. Studies show hepa filters get many small things under 100 nm in special rooms. ULPA filters have even higher standards for clean air. In cleanrooms, these filters keep out dust, smoke, and other bad stuff. This protects things like microchips and medicine from getting ruined. People working there breathe cleaner air, so they have less chance of allergies or breathing problems. MECONM’s glass fiber filter paper helps the filters work well and last long. Their filters help keep cleanrooms safe and support jobs that need very clean air.
ULPA filters:
Catch more tiny things than hepa filters
Keep cleanroom air safe for people and products
Help jobs like electronics, medicine, and car making
Picking ULPA filters from MECONM means you get better health, safety, and clean air in every cleanroom.
A ulpa filter can take out at least 99.999% of tiny particles. It catches things as small as 0.12 microns. This makes it very important for places that must be super clean. Some main features are special filter materials, strong cleaning power, and meeting tough rules.
Some industries like semiconductors, medicine, and biotech use ulpa filters to stop dirt and keep people safe.
Experts say to pick a ulpa filter if even tiny bits can cause problems or make people sick.
MECONM New Materials gives good air filter paper and membrane filter paper. These help with the hard jobs in cleanrooms and labs.
A ULPA filter can catch smaller things than a HEPA filter. It grabs at least 99.999% of things as tiny as 0.12 microns. HEPA filters trap 99.97% of things at 0.3 microns. ULPA filters give better safety in labs and cleanrooms.
ULPA filters are used in cleanrooms, medicine labs, electronics factories, and hospitals. These places need air that is very clean. MECONM makes strong air filter paper for these tough jobs.
MECONM uses special glass fiber filter paper and membrane filter paper. These help the filter grab tiny things and let air move well. The company also has hydraulic oil filter paper for other factory jobs.
How long a ULPA filter lasts depends on the air and how much it is used. Most last from 1 to 3 years if the air is clean. Checking them often keeps air systems working well and safe.
Yes. ULPA filters take out dust, pollen, germs, and some viruses. They help keep workers and products safe. MECONM’s air filter paper helps keep air very clean in special places.
