What Is A Robbin Spacer In Non-Separator Air Filters?

Modern facility engineers constantly face stricter airflow requirements and tighter energy budgets. You must ensure maximum filtration efficiency without overworking your HVAC systems. Historically, traditional corrugated separators dominated the industry. However, we now see a massive shift toward highly efficient mini-pleat, non-separator designs. Why does this matter? Internal filter geometry directly dictates your overall HVAC energy consumption and routine maintenance intervals. Poorly structured filters restrict airflow, skyrocketing energy demands.

This brings us to a critical engineering component: the robbin spacer. It serves as the backbone of modern mini-pleat filtration systems. You will learn how this simple adhesive ribbon enables high-density media packing without compromising aerodynamic performance. We will explore its core mechanics, structural advantages, and industry-specific applications. Finally, you will discover how to specify the right setup to optimize system reliability, ensure compliance, and maximize long-term operational savings.

Key Takeaways

• A robbin spacer (often a hot-melt adhesive ribbon) replaces bulky aluminum or paper corrugated separators in mini-pleat air filters.

• This design maximizes the active area of ASHRAE filter media, significantly reducing pressure drop and lowering energy costs.

• Non-separator filters with robbin spacers are essential for environments requiring strict laminar flow and zero particle shedding, such as cleanrooms and paint booths.

• Buyers must evaluate the adhesive’s temperature tolerance, as standard robbin spacers may degrade in extreme high-heat industrial applications.

The Engineering Problem: Pleat Collapse and the Role of the Robbin Spacer

Airborne filtration fundamentally relies on surface area. To pack more media into a confined frame, manufacturers fold it into deep pleats. However, this folded media requires robust structural support. Without proper reinforcement, high face velocities easily distort the delicate fabric.

This distortion creates a severe business problem. When unsupported filter folds pinch together under pressure, they cause a phenomenon known as "blinding." The pinched apex blocks the air passage, rendering a large percentage of the filter area completely useless. This sudden restriction spikes static pressure inside the ductwork. To compensate for the blockage, HVAC blowers must ramp up their speeds. They consume excess electricity just to maintain the baseline airflow, causing utility bills to surge.

Manufacturers solve this engineering challenge by injecting a precise hot-melt adhesive ribbon during the pleating process. This continuous bead hardens instantly, establishing rigid, aerodynamic support between each fold. Because the bead spans the entire depth of the pleat, it locks the geometry in place. It prevents blinding even under turbulent conditions. Furthermore, this structural mechanism occupies only a fraction of the physical space required by older separator methods. It directly enables a vastly higher pleat count per inch, delivering uninterrupted airflow and superior particle capture.

Separator vs. Non-Separator Designs: Core Evaluation Dimensions

Upgrading a facility's filtration strategy requires comparing legacy corrugated metal inserts against modern adhesive bead spacing. The differences extend far beyond basic construction. They fundamentally alter how air behaves inside your ventilation system.

Aerodynamic Efficiency & Pressure Drop

Traditional corrugated aluminum inserts force air to navigate around sharp metal ridges. This creates micro-turbulence and resistance. In contrast, a air filter spacer made of continuous adhesive creates a remarkably smooth channel. The air glides past the narrow beads, maintaining laminar flow. This aerodynamic profile yields a significantly lower initial pressure drop. Blowers face less resistance, translating to immediate electrical savings.

Media Utilization

Removing bulky metal or paper inserts drastically alters the internal volume equation. Corrugated dividers waste valuable space inside the frame.

• The Feature: An adhesive ribbon profile measures just millimeters in width.

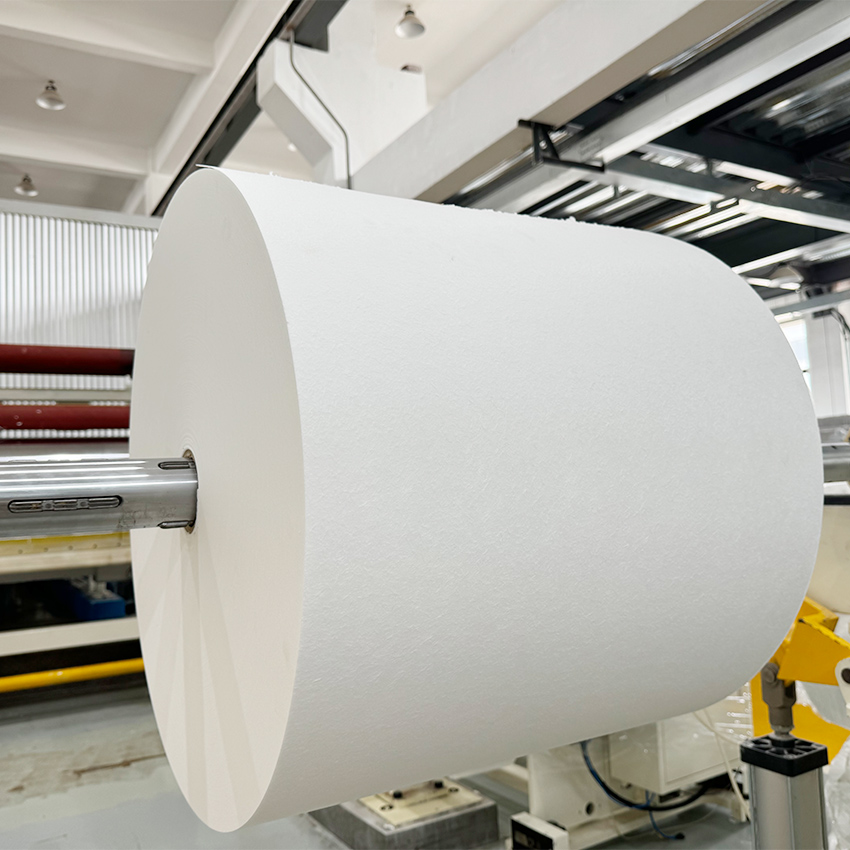

• The Advantage: Manufacturers can pack up to 30% more ASHRAE filter media into the exact same physical frame depth.

• The Outcome: You gain an extended service life. The enhanced surface area holds more dust before reaching terminal resistance, directly resulting in fewer costly changeouts.

Weight and Disposal Dynamics

Legacy filters carry substantial bulk. Sharp aluminum edges complicate maintenance handling and pose laceration risks to technicians. By eliminating these heavy metal components, non-separator designs streamline the replacement process. They are significantly lighter, safer to carry up ladders, and cheaper to dispose of. Facilities also save on hazardous solid waste disposal fees since the entirely combustible frames safely incinerate without leaving metal slag behind.

Industry-Specific Applications and Compliance Requirements

Different industrial sectors impose unique environmental demands on their HVAC systems. Understanding these regulatory constraints helps you select the correct filtration architecture.

Pharmaceutical Cleanroom Deployments

Cleanroom environments mandate strict adherence to ISO 14644 standards. Air purity is paramount. When deploying a pharmaceutical air filter, you cannot tolerate internal contamination. Traditional aluminum dividers often oxidize in humid environments. They also risk off-gassing or microscopic particle shedding from mechanical friction against the media. Hot-melt adhesive beads completely eliminate these threats. They remain chemically inert, firmly bonded, and structurally silent, ensuring absolute compliance with stringent sterile manufacturing protocols.

Automotive Spraying Filter Requirements

Surface finish quality defines success in automotive manufacturing. A downdraft paint booth relies on absolute laminar flow to function correctly. If the incoming air cascades erratically, it creates turbulence. This turbulence traps overspray and forces dirt inclusions into fresh clear coats. By utilizing a high-quality automotive spraying filter equipped with aerodynamic adhesive spacers, facilities guarantee uniform air distribution. The paint applies flawlessly, drastically reducing expensive post-production rework.

Commercial HVAC and Green Building Mandates

Modern commercial buildings face intense pressure to meet indoor air quality (IAQ) mandates while slashing carbon footprints. Achieving LEED certification requires demonstrable energy efficiency. High-density, mini-pleat designs provide exceptional MERV ratings without the steep energy penalty of traditional separators. Facility managers can effectively capture urban smog and fine particulate matter while keeping blower motor amperage at absolute minimums.

Implementation Risks and Environmental Limitations

While the non-separator architecture provides undeniable benefits, it is not universally applicable. You must acknowledge structural limitations before standardizing this technology across your entire operation.

Operating Temperature Constraints

Transparency regarding thermal limits is crucial. Adhesive ribbons consist of thermoplastic hot-melt compounds. By design, they soften when exposed to elevated temperatures. Standard formulations typically fail in environments exceeding 150°F to 170°F (65°C to 76°C). If you operate gas turbine intakes, industrial bakeries, or high-temperature curing ovens, standard beads will melt. The pleats will instantly collapse. In these extreme thermal zones, you must specify high-temp silicone sealants or revert to traditional aluminum separators.

Chemical Compatibility

Aggressive industrial atmospheres present another significant risk. If your facility processes harsh solvents, acidic fumes, or caustic airborne chemicals, standard EVA-based hot melts might degrade. Over time, chemical attacks embrittle the adhesive. The beads snap under airflow pressure, causing the media to flutter and tear. Always consult an application engineer to match the adhesive chemistry with your specific exhaust profile.

Manufacturing Quality Variances

The market is flooded with low-cost, imported mini-pleat filters. You must watch out for inconsistent manufacturing tolerances. Cheap production lines often suffer from irregular adhesive application. If the nozzle skips or applies an uneven bead, the pleat spacing becomes erratic. Uneven spacing forces air through the path of least resistance, overloading specific sections of the media. This invariably leads to premature filter failure, unexpected pressure spikes, and potential blowouts.

Shortlisting Logic: How to Specify the Right Air Filter Spacer Setup

Procuring the optimal filtration package requires disciplined evaluation. You must move beyond simple dimension matching and scrutinize the actual operational parameters.

Assess Environmental Variables

Do not guess your system parameters. Document them meticulously before requesting vendor quotes. Follow this sequential logic:

1. Log Peak Temperatures: Determine the absolute maximum temperature the filter bank will experience, not just the daily average.

2. Evaluate Humidity Levels: Identify if the intake air faces extreme moisture, which could affect media integrity.

3. Audit Chemical Exposure: List any corrosive gases, solvents, or volatile organic compounds (VOCs) present in the airstream.

4. Define Face Velocity Limits: Calculate the cubic feet per minute (CFM) required and cross-reference it against the filter's rated velocity.

Requesting Performance Data

Never rely solely on glossy marketing brochures. Demand transparent, independent testing data. You should request official ASHRAE Standard 52.2 reports for North American applications, or EN 779 / ISO 16890 documentation for global standards. Look specifically at the initial resistance curve. A premium non-separator filter spacer will clearly demonstrate a flatter resistance curve compared to a similarly rated corrugated model.

Evaluating Lifecycle Performance

Mini-pleat filters generally carry a higher upfront unit cost than standard corrugated versions. However, evaluating the purchase strictly on unit price is a massive mistake. You must build a framework comparing the premium acquisition cost against measurable operational savings. Calculate the projected reduction in blower electricity consumption driven by the lower pressure drop. Factor in the reduced labor overhead gained by doubling the maintenance intervals. Once you map out these variables over a 12-month cycle, the premium design typically justifies itself through massive downstream cost avoidance.

Conclusion

Upgrading to non-separator designs represents a major step forward for modern facility management. The shift away from archaic metal dividers unlocks substantial aerodynamic and operational advantages.

• Enhanced Aerodynamics: Continuous adhesive beads eliminate micro-turbulence, ensuring smooth and consistent airflow.

• Maximized Capacity: Removing bulky separators allows for a massive increase in active media, dramatically extending the filter's service life.

• Safer Handling: The lightweight, metal-free construction protects maintenance staff and streamlines sustainable incineration practices.

• Rapid ROI: Although premium mini-pleats cost slightly more upfront, the immediate energy efficiency and reduced labor demands yield a remarkably fast payback period.

Do not let outdated filtration geometry drain your maintenance budget. We encourage you to audit your current pressure drop data immediately. Consult with an application engineer to review your existing filter banks and model the projected energy savings of a modern upgrade.

FAQ

Q: What is the difference between a separator and a non-separator air filter?

A: Separator filters use bulky corrugated aluminum or paper inserts between media folds to hold them open. Non-separator filters replace these inserts with continuous, thin beads of hot-melt adhesive. This modern approach reduces aerodynamic resistance, lowers weight, and allows manufacturers to pack significantly more active media into the same physical frame.

Q: Can filters with robbin spacers handle high-temperature environments?

A: Standard adhesive spacers rely on thermoplastic hot-melt formulas, which generally soften and fail above 150°F–170°F (65°C–76°C). If your application exceeds these thermal limits, you must specify specialized high-temperature sealants or revert to traditional aluminum separators to prevent structural collapse.

Q: How does a non-separator design impact ASHRAE ratings?

A: Non-separator designs significantly enhance long-term performance. By accommodating more media area, they deliver a lower initial airflow resistance. This expanded surface area captures more particulate mass over time. Consequently, the filter sustains its target MERV or HEPA efficiency rating longer before reaching terminal pressure drop.

Q: Are filters with robbin spacers fully combustible for disposal?

A: Yes, they are highly sustainable. Because they eliminate sharp, heavy aluminum inserts, non-separator filters feature an entirely metal-free construction. This allows facilities to safely and easily incinerate the used units without producing hazardous metal slag, thereby reducing overall solid waste disposal fees.
